The Tie Rod Hydraulic Cylinder 3000PSI is a durable and high-pressure cylinder used in various industrial applications to provide reliable and efficient hydraulic power.

Characteristics of Tie Rod Hydraulic Cylinder 3000PSI

Operating pressure: 3000PSI
Applications: Medium duty
Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished
Seals: Top quality seals
Ports: NPT, SAE, BSP available
Color: Standard gloss black paint; Custom color available upon request
Package: Wooden crate reinforced with iron frame

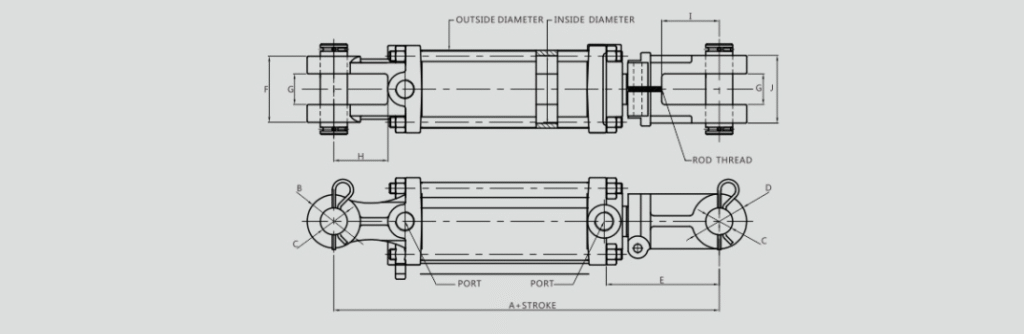

Technical Drawing of Tie Rod Hydraulic Cylinder 3000PSI

Specification of Tie Rod Hydraulic Cylinder 3000PSI

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
TTR30-2004	1-1/8″	2″x4″	14-1/4″	18-1/4″	3/8″NPT&SAE#8	1″	18
TTR30-2006		2″x6″	16-1/4-	22-1/4″			19
TTR30-2008		2″x8″	18-1/4″	26-1/4″			20
TTR30-2008-ASAE		2″x8″	20-1/4″	28-1/4″			20
TTR30-2010		2″x10″	20-1/4″	30-1/4″			21
TTR30-2012		2″x12″	22-1/4″	34-1/4″			25
TTR30-2014		2″x14″	24-1/4″	38-1/4″			26
TTR30-2016		2″xl6″	26-1/4″	42-1/4″			28
TTR30-2016-ASAE		2″xl6″	31-1/ 4″	47-1/ 4″			28
TTR30-2018		2″xl8″	28-1/4″	46-1/4″			29
TTR30-2020		2″x20″	30-1/4″	50-1/4″			31
TTR30-2024		2″x24″	34-1/4″	58-1/4″			35
TTR30-2030		2″x30″	40-1/4″	70-1/4″			39
TTR30-2036		2″x36″	46-1/4″	82-1/4″			40
TTR30-2040		2″x40″	50-1/4″	90-1/4″			43
TTR30-2048		2″x48″	58-1/4″	106-1/4″			49
TTR30-2504	1-1/4″	2.5″x4″	14-1/4″	18-1/4″	3/8″NPT&SAE#8	1″	17
TTR30-2506		2.5″x6″	16-1/4″	22-1/4″			22
TTR30-2508		2.5″x8″	18-1/4″	26-1/4″			24
TTR30-2508-ASAE		2.5″x8″	20-1/4″	28-1/4″			25
TTR30-2510		2.5″x10″	20-1/4″	30-1/4″			26
TTR30-2512		2.5″x12″	22-1/4″	34″1/4″			27
TTR30-2514		2.5″x14″	24-1/4″	38-1/4″			29
TTR30-2516		2.5″x16″	26-1/4″	42-1/4″			31
TTR30-2516-ASAE		2.5″x16″	31-1/ 4″	47-1/ 4″			33
TTR30-2518		2.5″x18″	28-1/4″	46-1/4″			34
TTR30-2520		2.5″x20″	30-1/4″	50-1/4″			36
TTR30-2524		2.5″x24″	34-1/4″	58-1/4″			39
TTR30-2530		2.5″x30″	40-1/4″	70-1/4″			44
TTR30-2536		2.5″x36″	46-1/4″	82-1/4″			46
TTR30-2540		2.5″x40″	50-1/4″	90-1/4″			48
TTR30-2548		2.5″x48″	58-1/4″	106-1/4″			55
TTR30-3004	1-3/8″	3″x4″	14-1/4″	18-1/4″	1/2″NPT&SAE#8	1″	23
TTR30-3006		3″x6″	16-1/4″	22-1/4″			24
TTR30-3008		3″x8″	18-1/4″	26-1/4″			27
TTR30-3008-ASAE		3″x8″	20-1/4″	28-1/4″			32
TTR30-3010		3″x10″	20-1/4″	30-1/4″			33
TTR30-3012		3″x12″	22-1/4″	34-1/4″			33
TTR30-3014		3″x14″	24-1/4″	38-1/4″			35
TTR30-3016		3″x16″	26-1/4″	42-1/4″			39
TTR30-3016-ASAE		3″x16″	31-1/4″	47-1/ 4″		1-1/4″	39
TTR30-3018		3″x18″	28-1/4″	46-1/4″		1″	42
TTR30-3020		3″x20″	30-1/4″	50-1/4″			45
TTR30-3024		3″x24″	34-1/4″	58-1/4″			47
TTR30-3030		3″x30″	40-1/4″	70-1/4″			53
TTR30-3036		3″x36″	46-1/4″	82-1/4″			61
TTR30-3040		3″x40″	50-1/4″	90-1/4″			63
TTR30-3048		3″x48″	58-1/4″	106-1/4″			66
TTR30-3504	1-3/8″	3.5″x4″	14-1/4″	18-1/4″	1/2″NPT&SAE#8	1″	30
TTR30-3506		3.5″x6″	16-1/4″	22-1/4″			33
TTR30-3508		3.5″x8″	18-1/4″	26-1/4″			35
TTR30-3508-ASAE		3.5″x8″	20-1/4″	28-1/4″			36
TTR30-3510		3.5″x10″	20-1/4″	30-1/4″			37
TTR30-3512		3.5″x12″	22-1/4″	34-1/4″			38
TTR30-3514		3.5″x14″	24-1/4″	38-1/4″			41
TTR30-3516		3.5″x16″	26-1/4″	42-1/4″			46
TTR30-3516-ASAE		3.5″x16″	31-1/4″	47-1/4″		1-1/4″	46
TTR30-3518		3.5″x18″	28-1/4″	46-1/4″		1″	47
TTR30-3520		3.5″x20″	30-1/4″	50-1/4″			49
TTR30-3524		3.5″x24″	34-1/4″	58-1/4″			54
TTR30-3530		3.5″x30″	40-1/4″	70-1/4″			64
TTR30-3536		3.5″x36″	46-1/4″	82-1/4″			66
TTR30-3540		3.5″x40″	50-1/4″	90-1/4″			70
TTR30-3548		3.5″x48″	58-1/4″	106-1/4″			73
TTR30-4004	1-3/4″	4″x4″	14-1/4″	18-1/4″	1/2″NPT&SAE#8	1″	41
TTR30-4006		4″x6″	16-1/4″	22-1/4″			45
TTR30-4008		4″x8″	18-1/4″	26-1/4″			49
TTR30-4008-ASAE		4″x8″	20-1/4″	28-1/4″			50
TTR30-4010		4″x10″	20-1/4″	30-1/4″			52
TTR30-4012		4″x12″	22-1/4″	34-1/4″			56
TTR30-4014		4″x14″	24-1/4″	38-1/4″			60
TTR30-4016		4“x16″	26-1/4″	42-1/4″			64
TTR30-4016-ASAE		4″x16″	31-1/4″	47-1/4″		1-1/4″	68
TTR30-4018		4″x18″	28-1/4″	46-1/4″		1″	68
TTR30-4020		4″x20″	30-1/4″	50-1/4″			72
TTR30-4024		4″x24″	34-1/4″	58-1/4″			80
TTR30-4030		4″x30″	40-1/4″	70-1/4″			92
TTR30-4036		4″x36″	46-1/4″	82-1/4″			104
TTR30-4040		4″x40″	50-1/4″	90-1/4″			116
TTR30-4048		4″x48″	58-1/4″	106-1/4″			140
TTR30-5004	2″	5″x4″	16-1/4″	20-1/4″	1/2″NPT&SAE#10	1-1/4″	60
TTR30-5006		5″x6″	18-1/4″	24-1/4″			63
TTR30-5008		5″x8″	20-1/ 4-	28-1/4″			67
TTR30-5010		5″x10″	22-1/4″	32-1/4″			71
TTR30-5012		5″x12″	24-1/4″	36-1/4″			75
TTR30-5014		5″x14″	26-1/4″	40-1/4″			80
TTR30-5016		5″x16″	28-1/4″	44-1/4″			82
TTR30-5016-ASAE		5″x16″	31-1/4″	47-1/4″			84
TTR30-5018		5″x18″	30-1/4″	48-1/4″			90
TTR30-5020		5″x20″	32-1/4″	52-1/4″			95
TTR30-5024		5″x24″	36-1/4″	60-1/4″			100
TTR30-5030		5″x30″	42-1/4″	72-1/4″			108
TTR30-5036		5″x36″	48-1/4″	84-1/4″			118
TTR30-5040		5″x40″	50-1/4″	90-1/4″			140
TTR30-5048		5″x48″	60-1/4″	108-1/4″			161
